Microchip’s 100/1000BASE‑T1 SPE PHYs Pack Security and Safety Features

Microchip Expertise has launched the LAN878x and LAN888x families of single-pair Ethernet (SPE) PHY transceivers, integrating hardware-based MACsec safety, native time-sensitive networking, and ISO 26262 ASIL-B purposeful security throughout 100BASE-T1, 1000BASE-T1, and dual-speed variants.

The brand new LAN878x and LAN888x chips.

The launch targets software-defined automobiles, zonal automotive architectures, and industrial determinism networks the place safety and timing necessities have outgrown previous-generation SPE PHYs.

MACsec, TSN, and Useful Security On-Chip

The LAN878x and LAN888x devices implement IEEE 802.1AE-2018 MACsec in {hardware}, offering frame-level confidentiality, knowledge integrity, and replay safety with out including software program stack overhead or latency. Pushing MACsec into the PHY relatively than the MAC or the host CPU removes a category of side-channel and software-vulnerability exposures which have grown in significance as automakers broaden publicity to over-the-air replace channels and aftermarket diagnostic interfaces.

Native TSN assist handles deterministic, low-latency communication required for ADAS, zonal gateways, and safety-critical management loops, though Microchip didn’t record which TSN sub-standards (reminiscent of 802.1AS-2020, 802.1Qbv, or 802.1Qci) are carried out within the launch supplies. The functional-safety engineering targets ISO 26262 ASIL-B methods, with on-chip diagnostics and hyperlink monitoring supposed to speed up fault detection and feed system-level security mechanisms, in what Microchip describes as “stronger system-level security mechanisms than conventional SPE PHY options.”

All gadgets are designed for Automotive Grade 1 operation, with a most junction temperature of 150°C and an working vary of -40°C to 125°C, permitting them to sit down in engine compartments and different harsh thermal environments alongside zone controllers.

Pin-Suitable Scaling Throughout Speeds

The LAN878x household contains the LAN8781, LAN8781M, LAN8782, and LAN8782M, whereas the LAN888x household contains the LAN8881, LAN8881M, LAN8882, LAN8882M, LAN8883, LAN8883M, LAN8884, and LAN8884M. The “M” suffix denotes MACsec assist; non-M variants omit the safety block whereas retaining TSN and ASIL-B options. Each households supply pin-compatible SKUs for 100BASE-T1 and 1000BASE-T1 variants, in addition to for SGMII and RGMII host interfaces.

Pin compatibility allows car and industrial OEMs to reuse a single PCB design throughout a number of community bandwidth and safety tiers, lowering engineering prices when scaling from a low-cost zonal sensor hyperlink to a 1000BASE-T1 spine hyperlink with out redesigning the host board. The identical method lets consumers stage MACsec adoption: ship a non-M variant in early manufacturing, then drop in an M variant on the identical footprint when MACsec turns into a contractual requirement.

SPE Buildout

Single-pair Ethernet adoption has accelerated as OEMs change legacy CAN, FlexRay, and LIN segments with all-Ethernet zonal architectures that simplify wiring harnesses and consolidate compute into fewer high-power zone controllers.

The 100BASE-T1 and 1000BASE-T1 variants of SPE, outlined by IEEE 802.3bw and 802.3bp, respectively, assist as much as 15 m of single twisted-pair cable at gigabit charges and longer runs at 100 Mbps, making them well-suited to in-vehicle, robotics, and process-automation deployments the place weight and area drive routing selections.

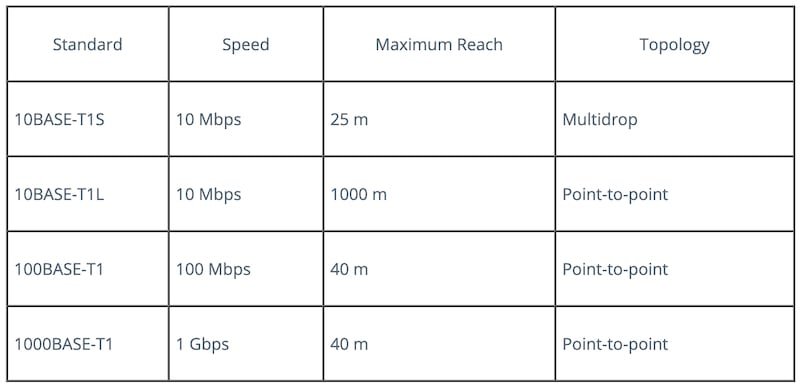

Overview of SPE requirements.

Microchip is competing towards Marvell’s 88Q2220 and 88Q5050 SPE PHYs, Texas Devices’ DP83TG720 and DP83TC81x households, and Realtek’s RTL9011AA, all of which goal related automotive and industrial prospects. The combination of MACsec on the PHY layer stays a differentiator, with most competing components implementing safety on the MAC or anticipating host-side dealing with.

Industrial adoption of SPE has lagged within the automotive section, however is accelerating as IEC 63171-6 and IEC 63171-2 connectors stabilize, and manufacturing unit flooring designers change legacy fieldbus protocols with Ethernet. UN Regulation No. 155 and ISO/SAE 21434 now require OEMs to show car community safety for approval within the European Union, Japan, and South Korea. {Hardware}-level MACsec helps fulfill these necessities with out forcing software program groups to implement frame-level cryptography.

The LAN878x and LAN888x gadgets are sampling now to guide prospects, with {hardware} analysis platforms, SGMII, USB, and PCIe plug-in boards, and Linux software program drivers out there as supporting improvement instruments.

All pictures used courtesy of Microchip.
